LC DoubleSpace 1600

Lifts with engine room

Technical specification

  • Load capacity 1600 kg
  • Number of persons 21
  • Number of stations max 16
  • Travel max 35 m

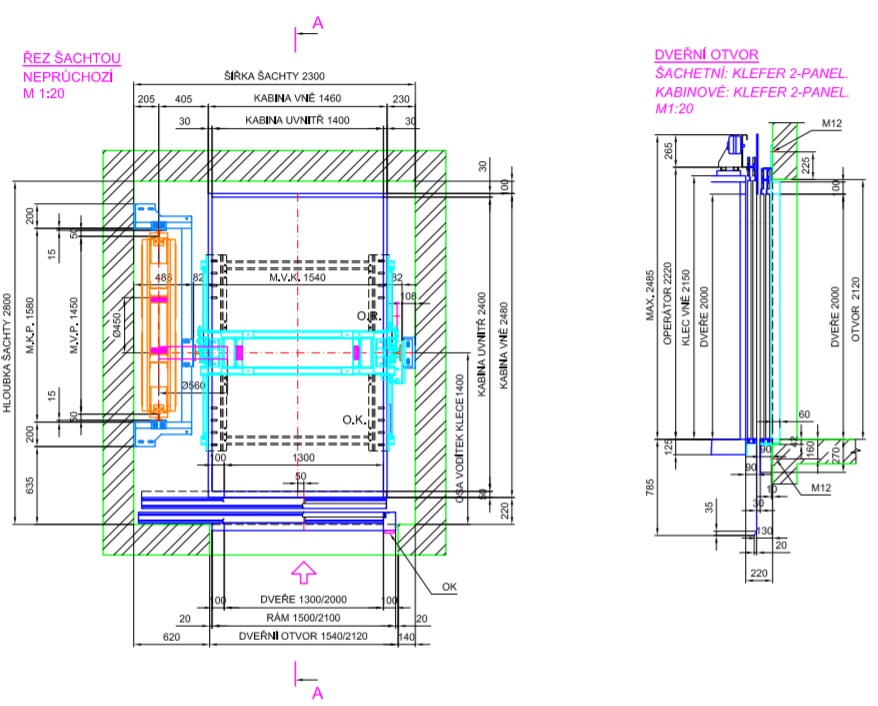

  • Cab 1400x2400 / 2120 mm
  • Shaft 2300x2800 mm
  • Shaft head 3715 mm (min. 2900)
  • Pit 1050 mm (min. 1000)
  • Frame Type TLM16-SK
  • Gearless machine
  • Engine power 12 kW / 26A
  • Counterweight side / concrete
  • Door 1300 mm wide
  • Automatic doors 2 panels
  • The lift is remotely monitored (LC monitoring 365)
1. Design lift cars
  • Five series of lift cabins
  • Dozens of lights, accessories and hundreds of color combinations
  • Crystal clear surfaces, precise lines, perfectly manufactured
  • Premium materials, stainless steel surfaces, LED lighting, design elements and sharpened glass
  • The cabins are galvanized on both sides, which significantly increases their service life

<more information about lift design

2. Safe lift
  • All lift components are pre-tested in our testing tower located in Karviná
  • We are a lift manufacturer - a stable company with 100% Czech capital
  • We monitor lifts for your safety - Watch your lift at any time and from anywhere. Several problems can be solved remotely.
  • Lifts are equipped with emergency cabin communicator
  • In case of power failure there is an emergency exit
3. Hi-Tech components
  • We produce lifts for you in our factory in Karviná
  • We complement our own production with quality components from leading European manufacturers
  • Engine MORIS - our long-time partner, one of the largest and best hydraulic manufacturers in Europe
  • Klefer doors - part of the multinational group "Tecnolama", delivering into 90 countries of the world <more about Klefer doors
  • Pushbuttons in the cabin and station <more about button panels
 4. Swiss manufacturing technology
  • We use top-quality machines from Switzerland (laser and Bystronic press brakes, Trumpf sheet metal punching from Germany) for production.
  • These technologies assure that LC lifts are made as compatible kits, which guarantee their long life
  • Due to the technology of production and used materials, the whole structure is lightweight
  • The main parts of the lif(cab, frame, brackets and more) are galvanized
  • "If the components are not galvanized, they often look like 10 years old after 1 year of usage"
