LC HydroSpace

Hydraulic lifts

Hydraulic lift

for low building up to 6 floors





How does this elevator work:
  • The lifting power is supplied by an electrically driven agregate
  • The agregate transports hydraulic oil to the hydraulic piston
  • The lift is lifted by the hydraulic piston
  •  When the lift is going down, the power consumption is 0
  • The engine room can be anywhere near the shaft
  • If there is no enough space for the engine room, the machine can be placed in the box

Where it fits
  • Ideal lift for low buildings up to 6 stations with lower traffic
  • Lift for low apartment buildings
  • Administration buildings
  • Hotels and guesthouses
  • Modernization of your current lift
 Parameters
  • Load capacities from 320 to 1600 kg
  • Speed ​​0.6 m / s
  • Number of stations from 2 to 6
  • Maximum lift 20 m
  • Door width 700mm to 1300mm
  • Hydraulic engine Moris
  • Cabin from 900x1500mm to 1400x2400mm
  • Shaft from 1450x1420mm to 2250x2770mm


Advantages
  • Simple, plain, quiet lift
  • The hydraulic lift is quieter than the rope lift
  • Green efficient lift
  • Easy maintenance (even non-professional can free passengers)
  • It uses the shaft space better than the rope lift
  • Long life due to galvanized parts



For more information about this lift type or its prices please contact us (use a form below or this inquire)

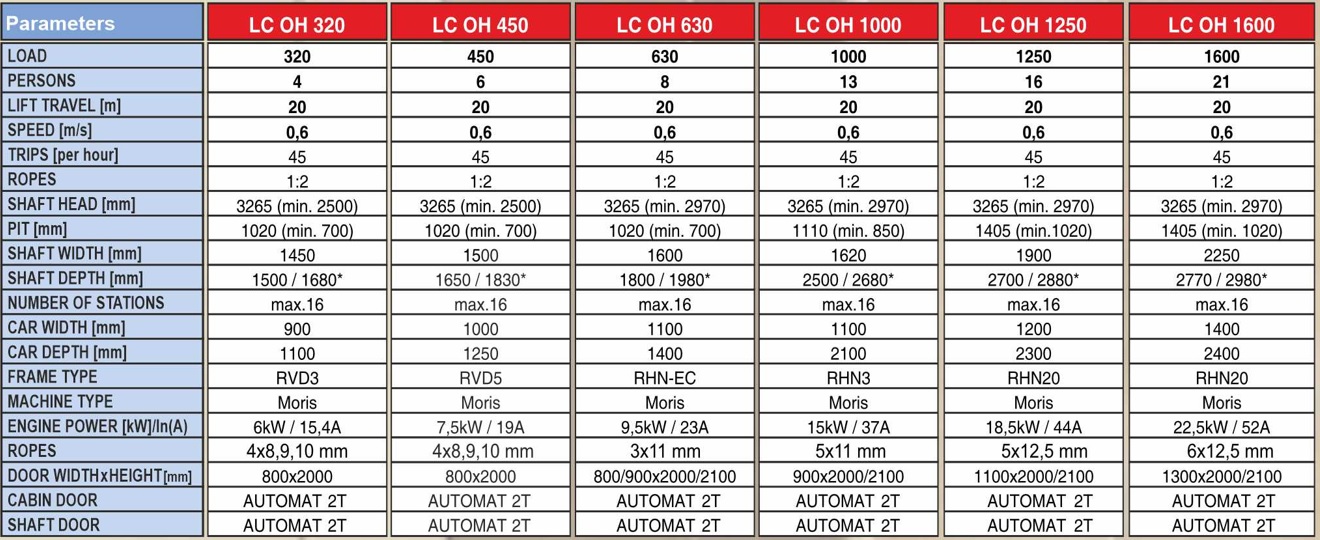

Parameters

LC OH
320

LC OH
450

LC OH
630

LC OH
1000

LC OH
1250

LC OH
1600

LOAD
320
450
630
1000
1250
1600
NUMBER OF PERSONS
4
6
8
13
16
21
LIFT TRAVEL (m)
20
20
20
20
20
20
SPEED (m/s)
0,6
0,6
0,6
0,6
0,6
0,6
TRIPS (trips per hour)
45
45
45
45
45
45
ROPES
1:2
1:2
1:2
1:2
1:2
1:2
SHAFT HEAD (mm)

3265
(min.2500)

3265
(min.2500)

3265
(min.2970)

3265
(min.2970)

3265
(min.2970)

3265
(min.2970)

PIT (mm)

 1020
(min.700)

1020
(min.700)

1020
(min.700)

1110
(min.850)

1405
(min.1020)

1405
(min.1020)

SHAFT WIDTH (mm)
1450
1500
1600
1620
1900
2250
SHAFT DEPTH (mm)
1500 / 1680*
1650 / 1830*
1800 / 1980*
2500 / 2680*
2700 / 2880*
2770 / 2980*
NUMBER OF STOPS
max.16
max.16
max.16
max.16
max.16
max.16
CAR WIDTH (mm)
900
1000
1100
1100
1200
1400
CAR DEPTH (mm)
1100
1250
1400
2100
2300
2400
FRAME TYPE
RVD3
RVD5
RHN-EC
RHN3
RHN20
RHN20
MACHINE TYPE
Moris
Moris
Moris
Moris
Moris
Moris
ENGINE POWER (kW) / In(A)
6kW / 15,4A
7,5kW / 19A
9,5kW / 23A
15kW / 37A
18,5kW / 44A
22,5kW / 52A
ROPES
lano 4x8,9,10
lano 4x8,9,10
lano 3x11
lano 5x11
lano 5x12,5
lano 6x12,5
DOOR WIDTH (mm)
800x2000
800x2000

800/
900x2000/2100

900x2000/2100
1100x2000/2100
1300x2000/2100
CAR DOOR
 AUT. 2T
 AUT. 2T
 AUT. 2T
  AUT. 2T
  AUT. 2T
  AUT. 2T
SHAFT DOOR

 Notice:

* Thoroughfares variant

We are ready to modify our standarad solutions according to your needs

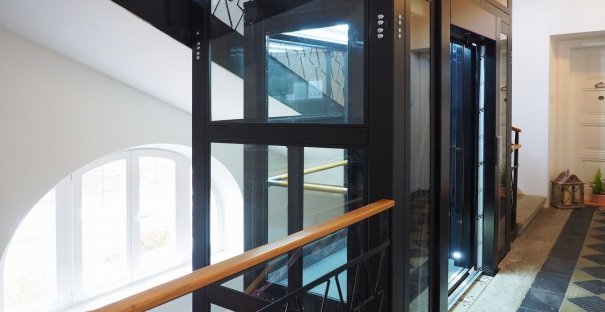

LC HydroSpace 630

  • Load capacity 630kg
  • Speed 0.6 m / s
  • Number of persons 8
  • Cab 1100x1400mm
  • Shaft 1600x1800mm
