LC DoubleSpace

Rope lifts with machine room





Rope lifts with engine room



How rope lift works
  • The lift cabin is suspended on the ropes and is driven by the machine over the traction sheave.
  • The weight of the cabin and its load is balanced by the counterweight
  • The machine is located in a separate machine room
Where to fit

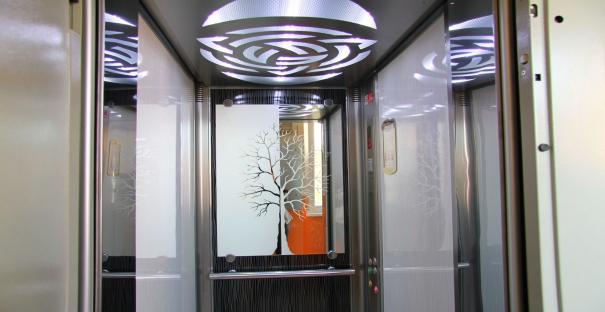

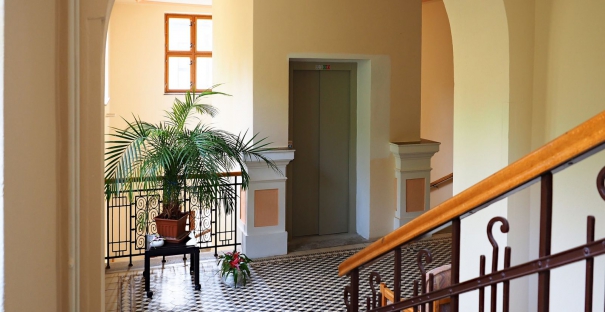

  • Lift for apartment buildings

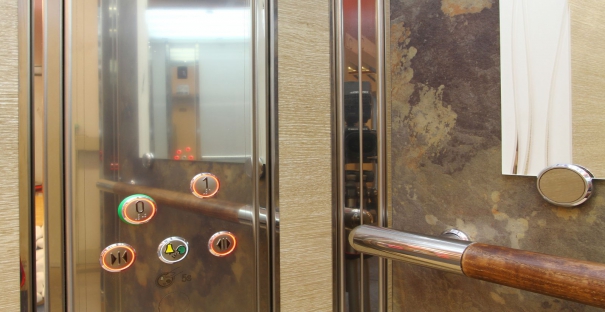

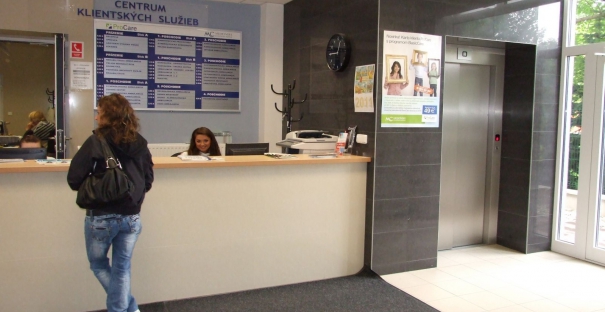

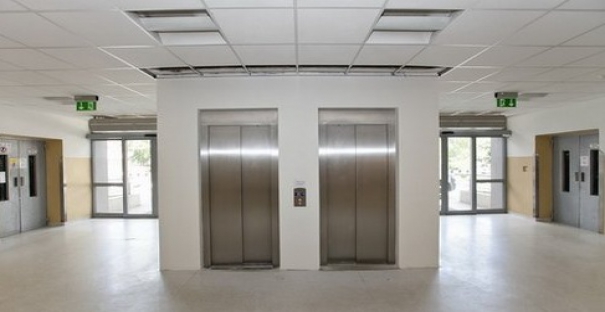

  • Lift for hospitals

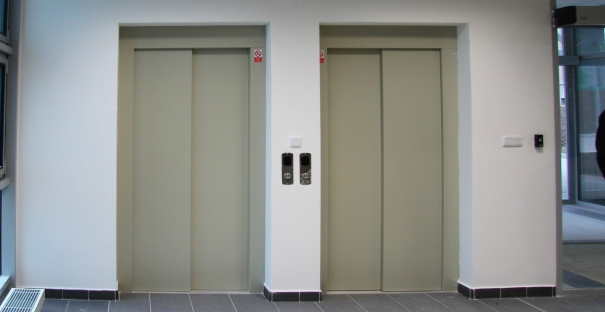

  • Office buildings
  • All buildings with more floors and high daily traffic
  • Old lift modernization
Parameters
  • Load capacities from 320 to 2000 kg
  • Speed 1.0 m / s to 1.6 m / s
  • Number of stations from 2 to 16
  • Maximum travel 35 m
  • Door width 700mm to 1300mm
  • Geared or gearless machine
  • Cabin from 800x1200mm to 1400x2400mm
  • Shaft from 1040x1420mm to 2300x2800mm
Advantages
  • Higher speed
  • Higher number of floors (up to 16)
  • Quiet lift operation due to separate machine room
  • Long life due to galvanized parts
  • Steel ropes last up to 2 times longer than belts



For more information about this lift type or its prices please contact us (use a form below or this inquire)



PARAMETERS
LC OL 320
to 460 (1:1)
LC OL 320
to 460 (1:2)
LC OL 500
to 550 (1:1)
LC OL 1000
(1:1)
LC OL 1250
 (1:2)
LC OL 1600
(1:1)
LC OL 1600 (1:2)
CAPACITY 320 - 450 320 - 450 550 1000 1250 1600 2000
N. OF PERSONS   4 to 6 4 to 6 8 13 16 21 26
TRAVEL
(m)		 35 35 35 35 35 35 35
SPEED
(m/s)		 1,0** 1,0** 1,0** 1,0** 1,0** 1,0** 1,0**
N. OF TRAVEL 240 240 240 240 240 240 240
VDI 4707
/ CLASS		 2 to 4 2 to 4 2 to 4 2 to 4 2 to 4 2 to 4 2 to 4
ROPES 1:1 1:2 1:1 1:1 1:2 1:1 1:2
HEAD OF SHAFT
(mm)		 3335
(min.2960)		 3335
(min.2960)		 3335
(min.2600)		 3335
(min.3060)		 3335
(min.3060)		 3335
(min.3060)		 3335
(min.3060)
PIT 1070
(min.850)		 1070
(min.850)		 1070
(min.850)		 1070
(min.850)		 1070
(min.850)		 1070
(min.850)		 1070
(min.850)
WIDTH OF SHAFT
(mm)		 1040 1040 1200 1800 1800 1800 1800
DEPTH OF SHAFT
(mm)		 1420 /
1500***		 1420 /
1500***		 2200 1800 1800 2400 2400
N. OF FLOORS max. 35 max. 35 max. 35 max. 35 max. 35 max. 35 max. 35
WIDTH OF CAR
(mm)
 800 800 800 1320 1320 1020 1020
DEPTH OF CAR
(mm)		 1200 1200 1850 1250 1250 2000 2000
FRAME TLM9-2010 TLM9-2010
TLM10-2011 /
TLM11-2012
TLM10-2011 /
TLM11-2012
TLM10-2011 /
TLM11-2012
 TLM11-2012 TLM11-2012
MACHINE
gearless
gear
 gearless
gearless
gear
 gear gearless gear gearless
MACHINE
PERFORMANCE
(kW) In(A)
4,0 kW/9,8A
2,9kW/8,5A
 2,9kW/8,5A
5,5kW/13A
4,2 kW/12A
 7,5kW/17A 4,8kW /13,5A 9kW / 20,5A 7,5kW/19,5A
WIDTH OF DOOR
(mm)
700/750/800
x2000
700/750/800
x2000
700/800
x2000
 800x2000 800x2000
800/900
x2000
800/9000
x2000

Note:
* if you have higher travel, please contact us for new solution
** Nominal speed 1,0m/s is our standard, maximal nominal speed is  1,6m/s
*** Walk through

We are prepared to modify our standard solution to your demand.

LC DoubleSpace 450
  • Load capacity 450 kg
  • Speed  1 m/s
  • Number of persons 5
  • Cabin 800x1250mm
  • Shaft 1040x1500mm
> more information
LC DoubleSpace 550
  • Load capacity 550 kg
  • Speed ​​1 m / s
  • Number of persons 7
  • Cabin 800x1850mm
  • Shaft 1200x2200mm

> more information
LC DoubleSpace 650
  • Load capacity 650 kg
  • Speed 1 m/s
  • Number of persons 8
  • Cabin 1320x1250 mm
  • Shaft 1800x1800 mm
> more information
LC DoubleSpace 800 - 1000
  • Load capacity 800 - 1000 kg
  • Speed 1 m/s
  • Number of persons 10-13
  • Cabin 1100x2000mm
  • Shaft 1800x2400mm
> more information
LC DoubleSpace 1250
  • Load capacity 1250 kg
  • Speed 1 m/s
  • Number of persons 16
  • Cabin 1200x2300 mm
  • Shaft 2100x2700 mm
> more information
LC DoubleSpace 1600
  • Load capacity 1600 kg
  • Speed 1 m/s
  • Počet osob 21
  • Cabin1400x2400 mm
  • Shaft 2300x2800 mm
> more information
