LC MINI

Home lifts

Hydraulic platform for family houses





How LC mini works:
  • It is a hydraulic platform, which is indistinguishable from lift
  • LC mini wil replace the lift in full range
  • The power is supplied by an electrically driven agregate (machine)
  • When LC mini goes down, the power consumption is almost 0
  • If there is no enough space for the engine room, a machine can be placed in the box beside door
Where it fits
  • Ideal lift for family houses
  • It is suitable for corporate residences, guest houses or hotels
  • Low buildings (up to 4 floors)

Parameters
  • Load capacities from 250 to 500 kg
  • Speed 0.15 m / s
  • Number of stations from 2 to 5
  • Maximum lift 12 m
  • Door width 600mm to 1000mm
  • Hydraulic drive Moris
  • Cabin from 900x750mm to 1100x1800mm
  • Shaft from 900x1420mm to 2250x2770mm
Advantages
  • Significantly lower price
  • Very low energy consumption
  • Annual consumption of 250 kW (at 12 500 travels)
  • Installation takes only 5 days (
  • LC mini does not require expensive construction work
  • Easy operation
  • TÜV type certificate



For more information about this lift type or its prices please contact us (use a form below or this inquire)

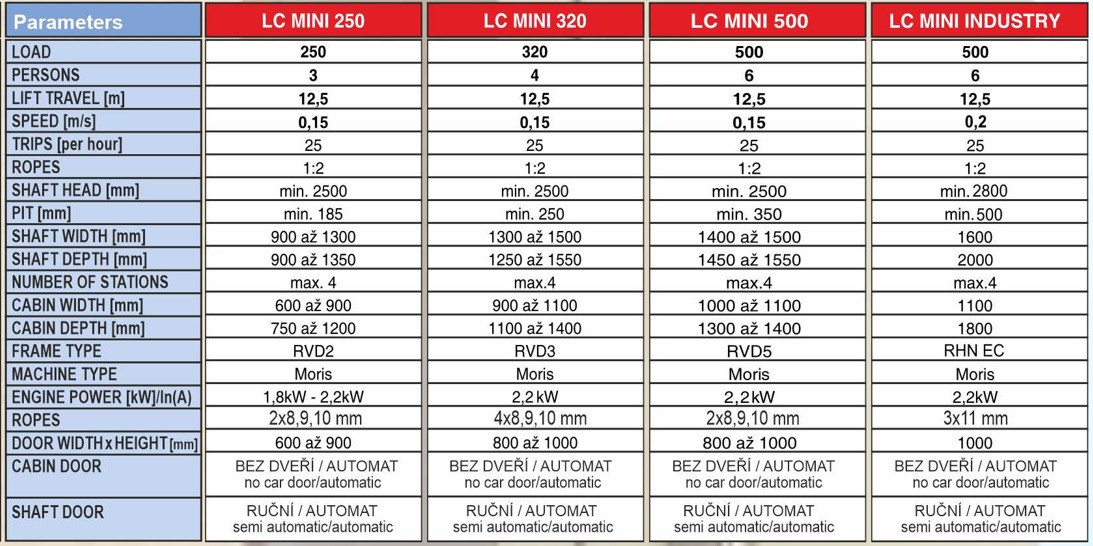

Parameters LC MINI 250 LC MINI 320

LC MINI 500

LOAD 250 320 500
NUMBER OF PERSONS 3 4 6
LIFT TRAVEL (m) 12 12 12
SPEED (m/s) 0,15 0,15 0,15
TRIPS (trips per hour) 25 25 25
ROPES 1:2 1:2 1:2
SHAFT HEAD mm) min.2500 min.2500 min.2500
PIT (mm) min.200 min.250 min.350
SHAFT WIDTH (mm) from 1000 to 1300 from 1300 to 1400 from 1400 to 1500
SHAFT DEPTH (mm) from 950 to 1350 from 1250 to 1700 from 1450 to 1800
NUMBER OF STOPS max.4 max.4 max.4
CAR WIDTH (mm) from 650 to 900 from 900 to 1000 from 1000 to 1100
CAR DEPTH (mm) from 800 to 200 from 1100 to 1300 from 1300 to 1400
FRAME TYPE RVD2 RVD3 RVD5
MACHINE TYPE Moris Moris Moris
ENGINE POWER(kW) 1,8kW - 2,2kW 2,2kW 2,2kW
ROPES rope  2x8,9,10mm rope 4x8,9,10mm rope 4x8,9,10mm
DOOR WIDTHÍ (mm) from 600 to 900 from 800 to 900 from 800 to 900
CAR DOOR without door / automatic without door / automatic without door / automatic
SHAFT DOOR manual / automatic manual / automatic manual / automatic

For project architects -  Stavební připravenosti



LC MINI 250
  • Load capacity 250 kg
  • Speed 0,15 m/s
  • Number of persons 3
  • Cabin 650x800 mm
  • Shaft 1000x950 mm
LC MINI 320
  • Load capacity 320 kg
  • Speed 0,15 m/s
  • Number of persons 4
  • Cabin 900x1100 mm
  • Shaft 1300x1250 mm
LC MINI 500
  • Load capacity 500 kg
  • Speed 0,15 m/s
  • Number of persons 6
  • Cabin 1000x1300 mm
  • Shaft 1400x1450 mm
LC MINI 500 Industry
  • Load capacity 500 kg
  • Speed 0,15 m/s
  • Number of persons 6
  • Cabin 1100x1800 mm
  • Shaft 1600x2000 mm
