LC Elegant

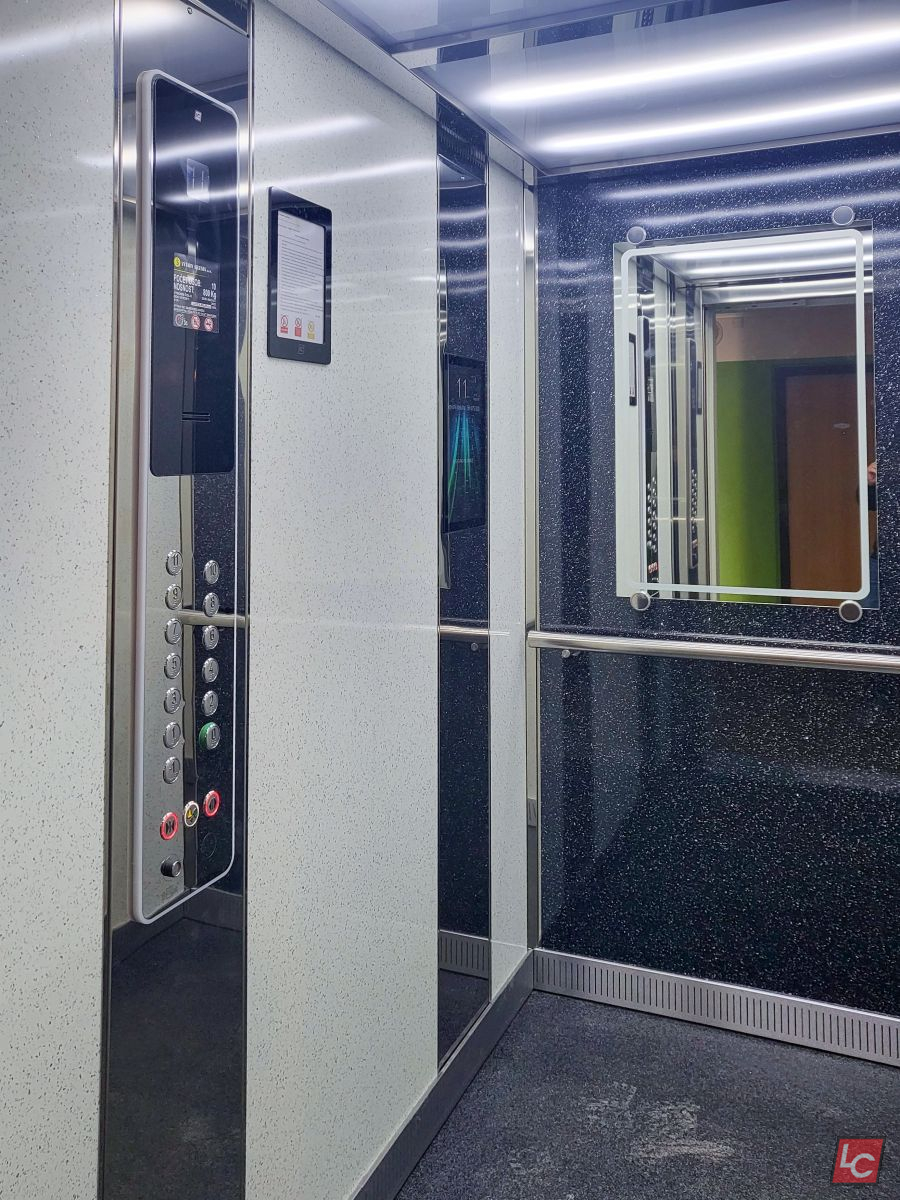

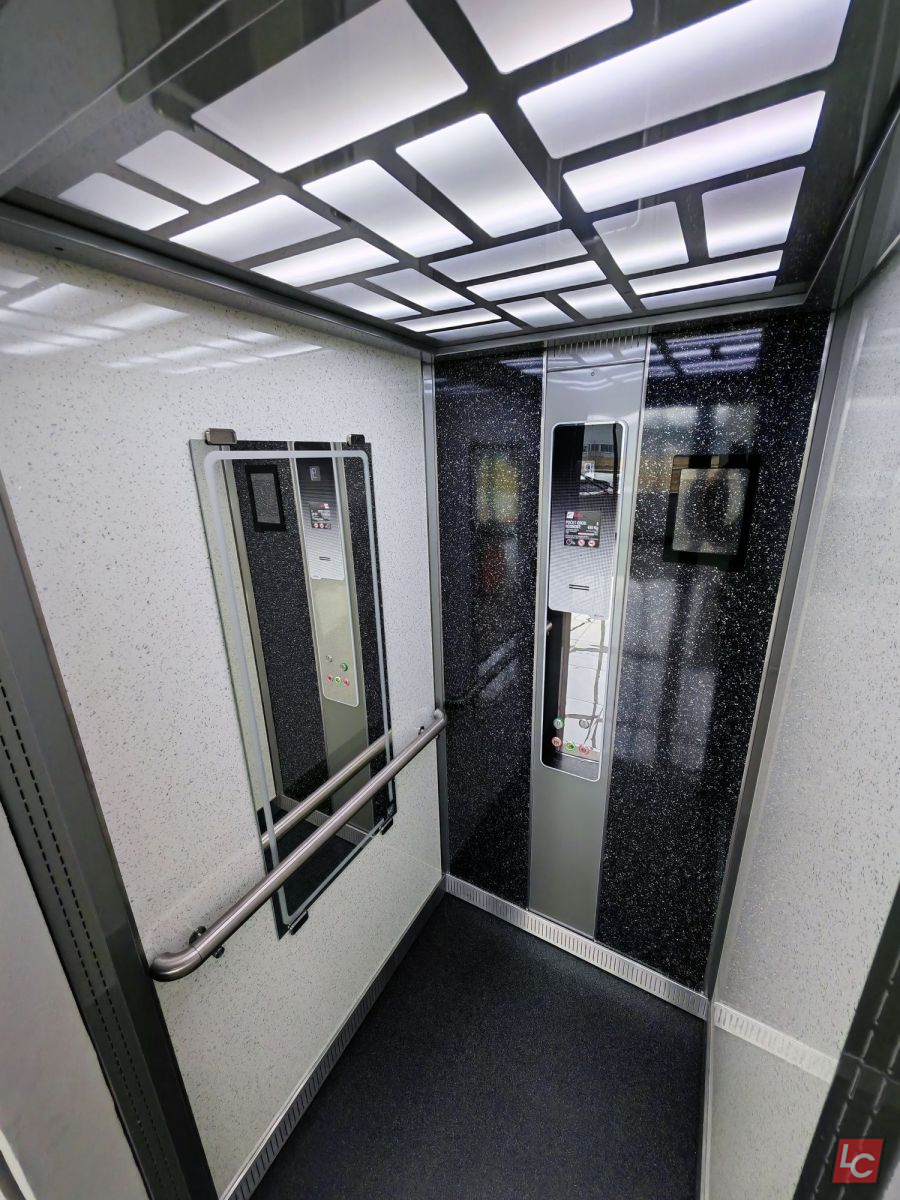

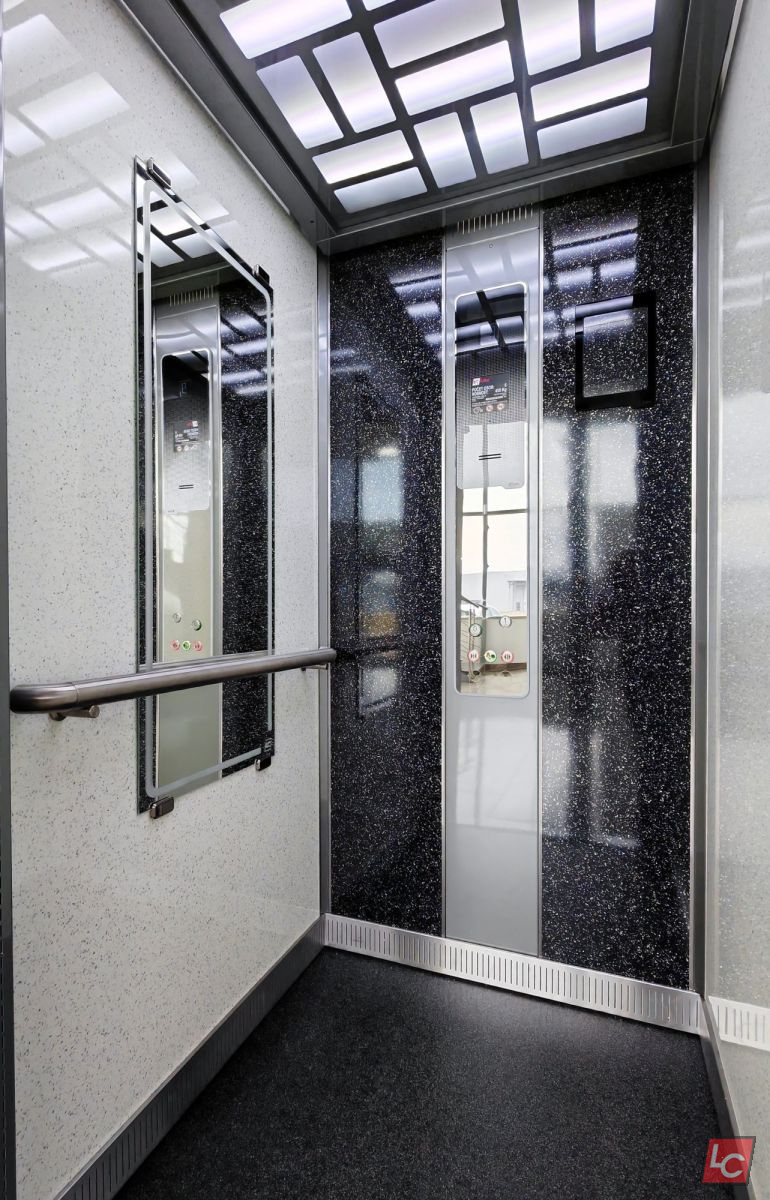

Lift cabin with walls decorated with laminate



Floor
Floor is made of a lightweight fully galvanized steel sandwich.
Floor covering
a) PVC covering ALTRO in different colour variants. This material is made of softened vinyl, aluminium oxide and silicon carbide grains, polyester-cellulose layer and glass fibre grid.
b) Natural material MARMOLEUM. This material is made of linseed oil, resin, wood flour, limestone, pigments and jute fabric Marmoleum is made from natural ingredients (97%)

Two-layer walls - galvanized steel sheet + decorative laminate POLYREY

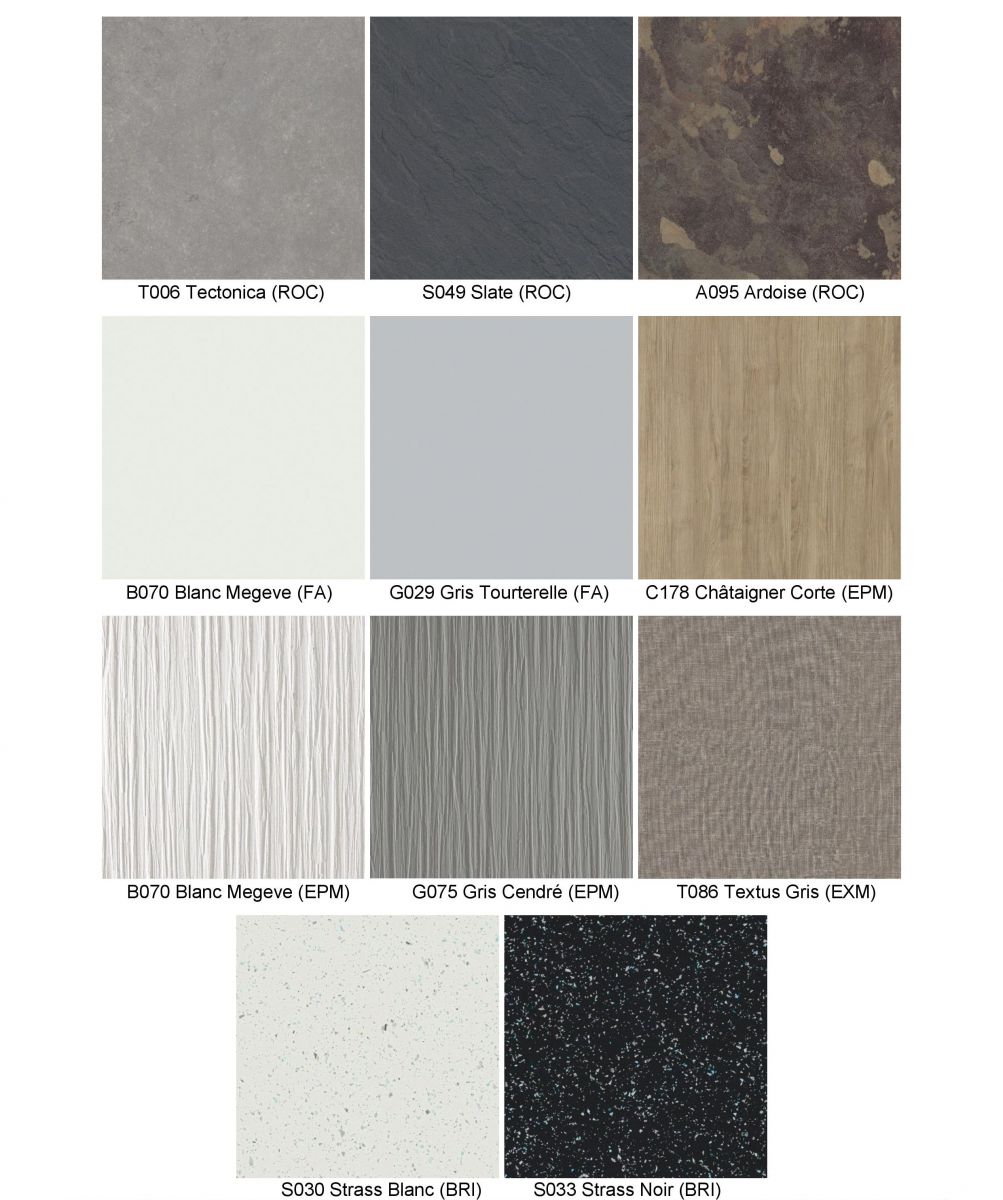

POLYREY is a decorative laminate - high-pressure resistant, abrasion resistant and hardened material. In our standard sample there are 10 Polyrey colours. In extended colour sample there are more than 200 colours and motives you can choose from.








Front entrance portals and rear corner parts (bevelled at an angle of 45°)

  • PLALAM F12PPS – silver colour (stainless steel imitation)

  • PLALAM N3PP Black – black colour (polished)



Floor kick plates are made of brushed stainless steel K400. They are 100 mm high and perforated to ensure lift cabin ventilation.
Information panel in a stainless-steel frame

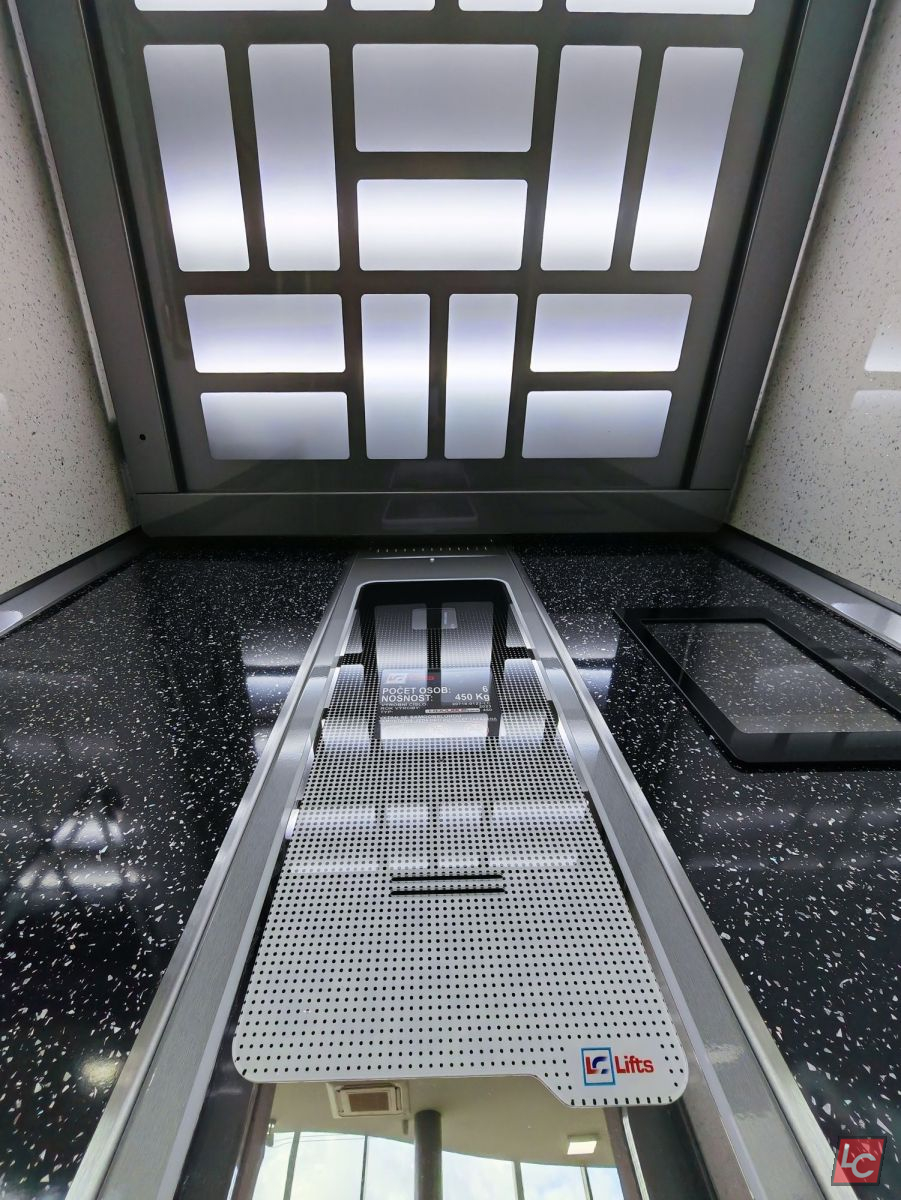

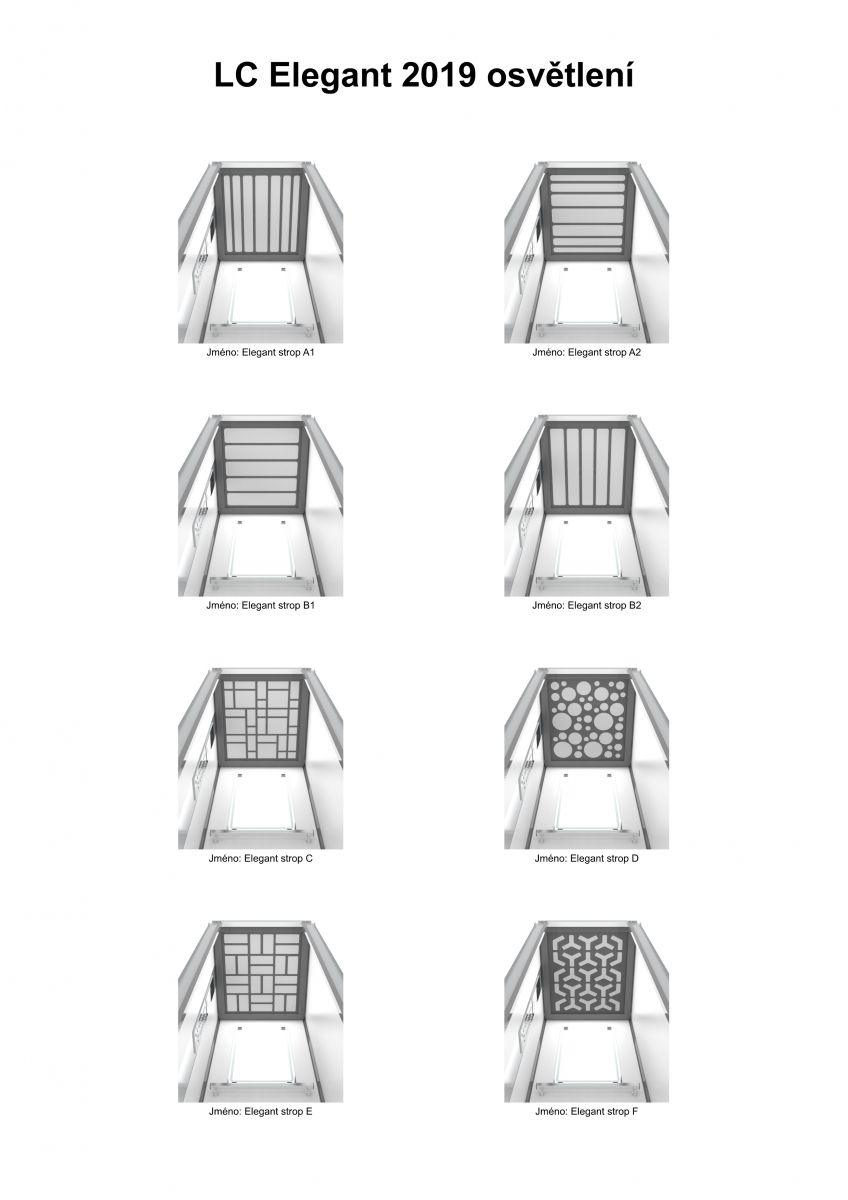

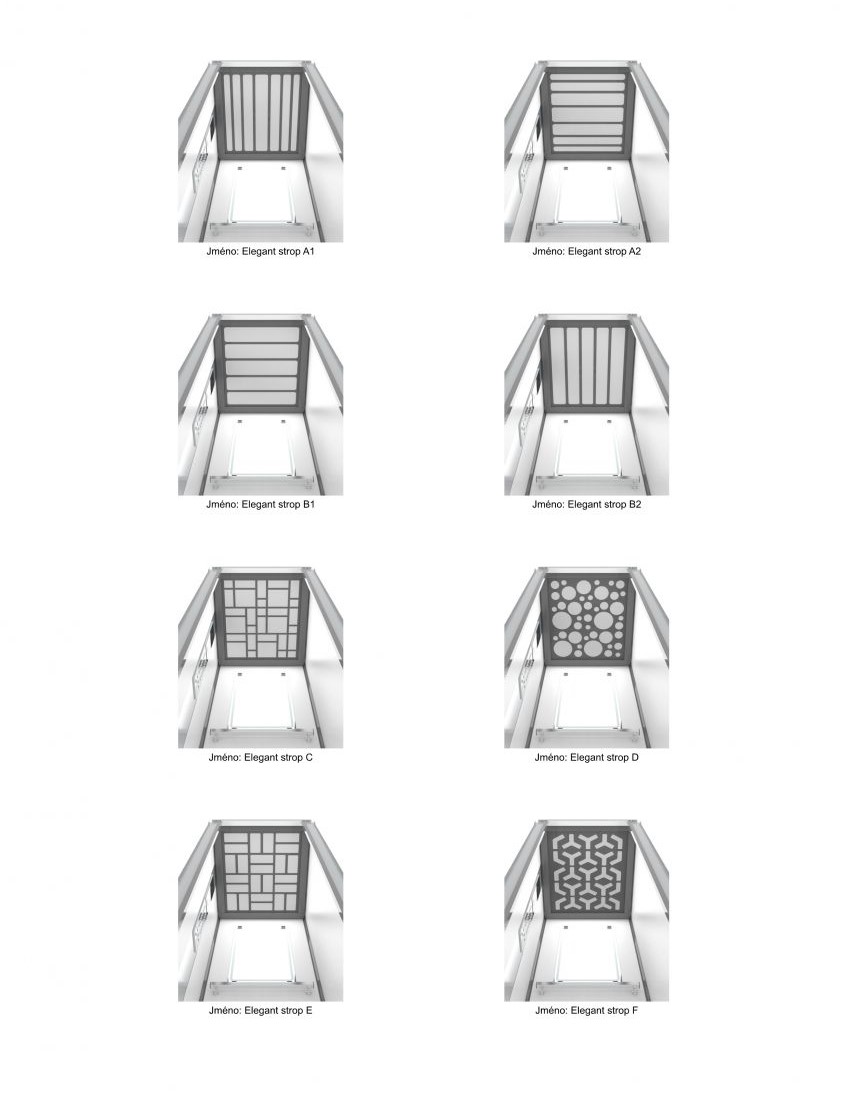

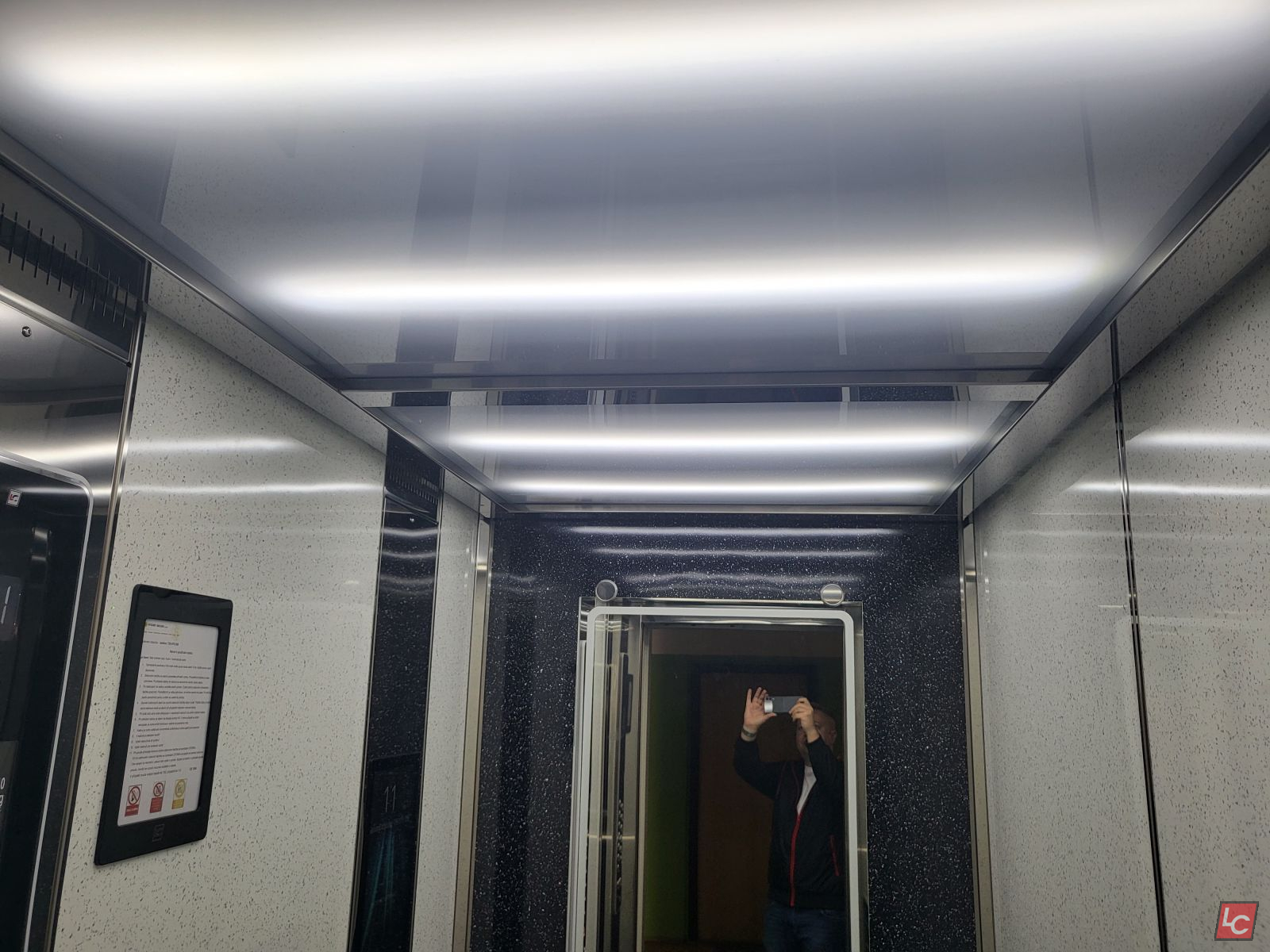

Ceiling lightning (LED)

  • Nebbia - Standard type of ceiling lightning. Silver or black edges (Plalam F12PPS or N3PP)

  • Nebbia with black rectangular pattern inside (see page 8)

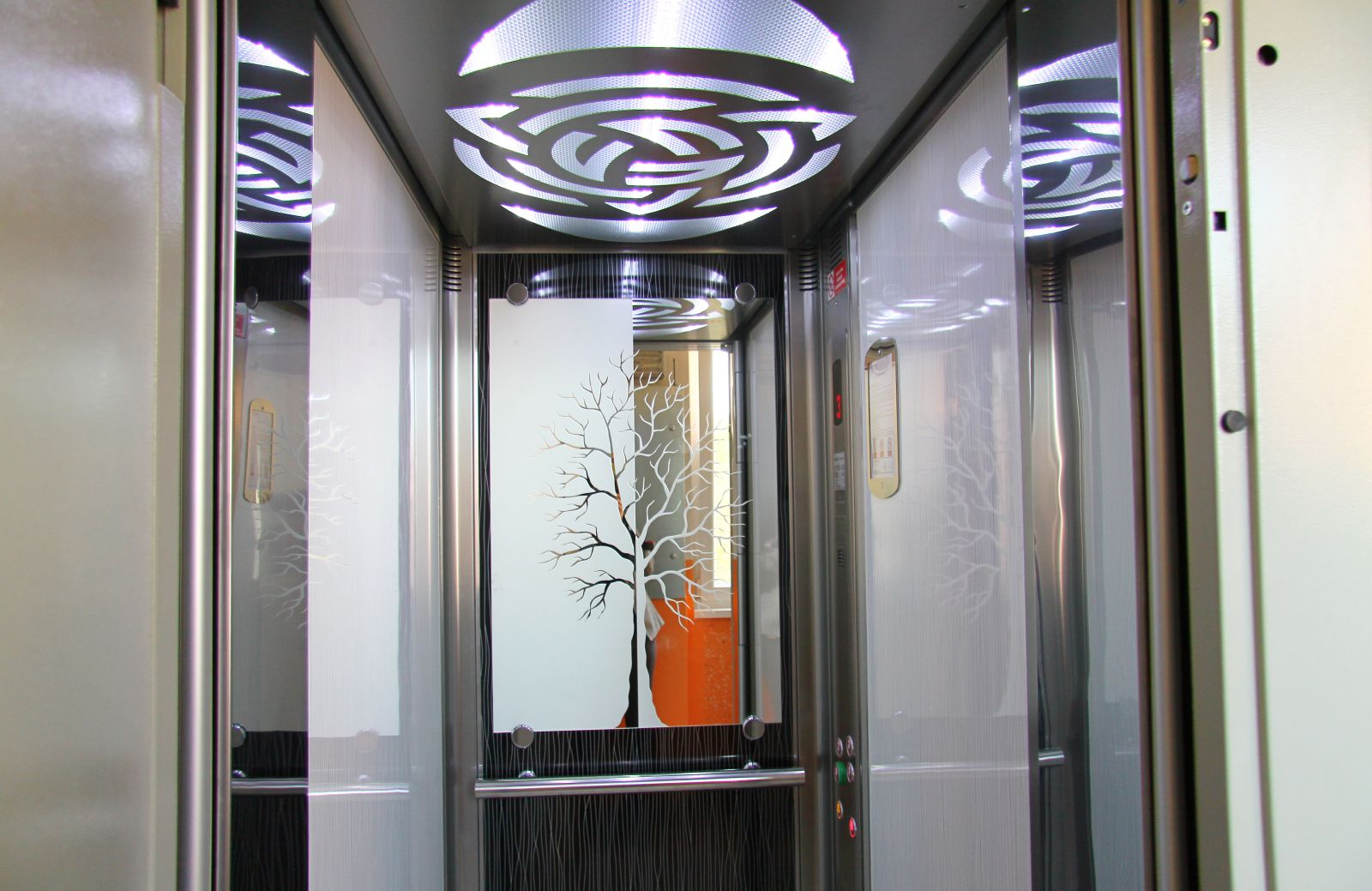

  • Pattern – you can also have ceiling with a pattern (see page 6)

All types of ceiling lightning have LED lights with diffuser and cooler for long life.

Handle:

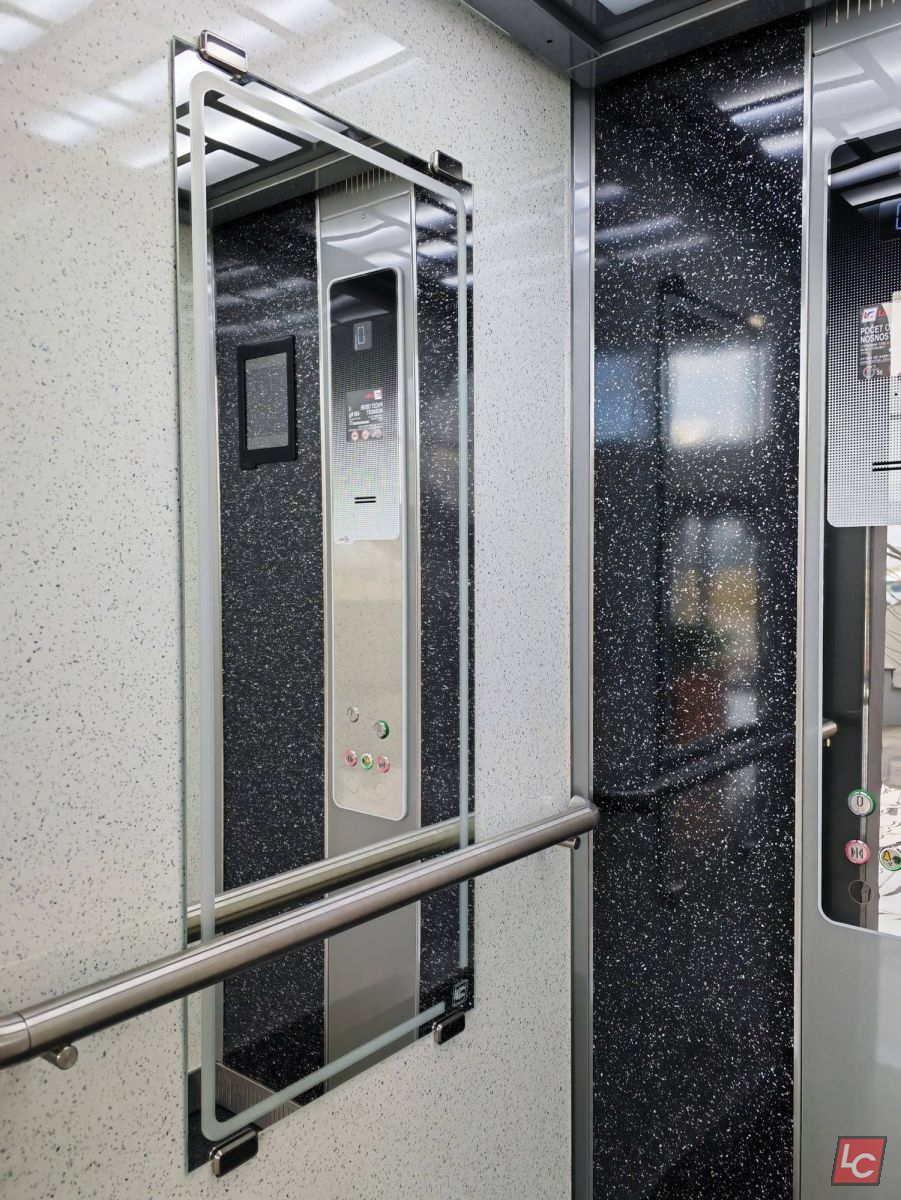

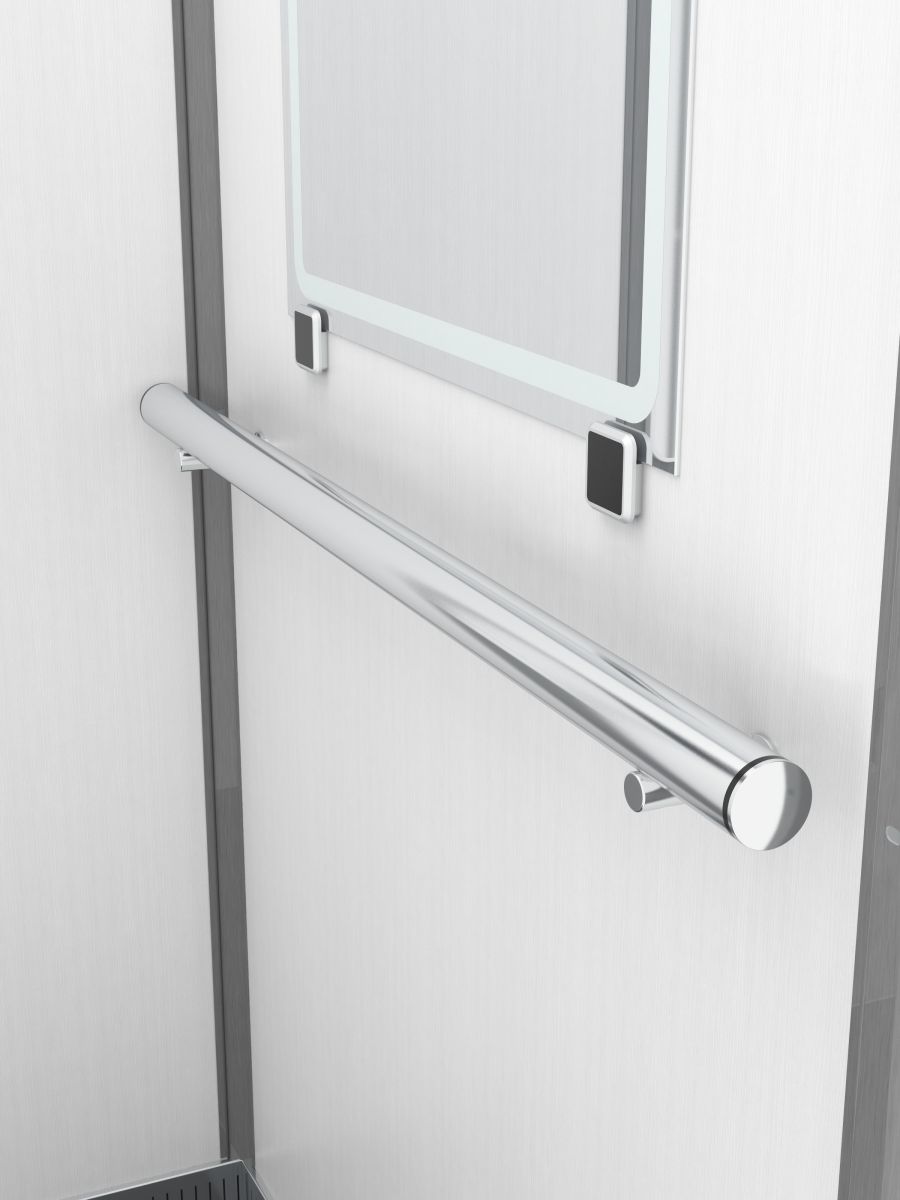

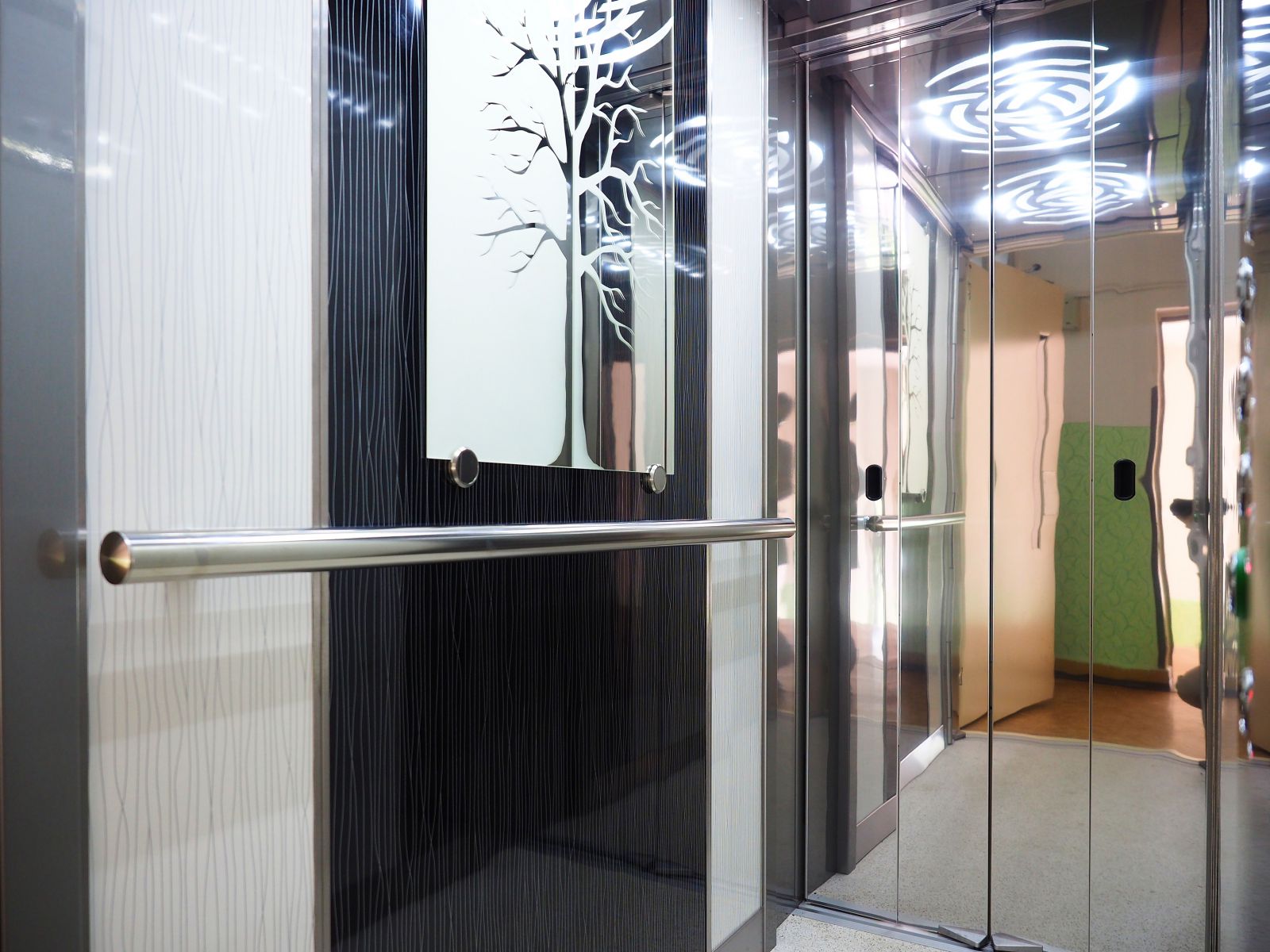

  • Round stainless-steel handle (diameter 42 mm)

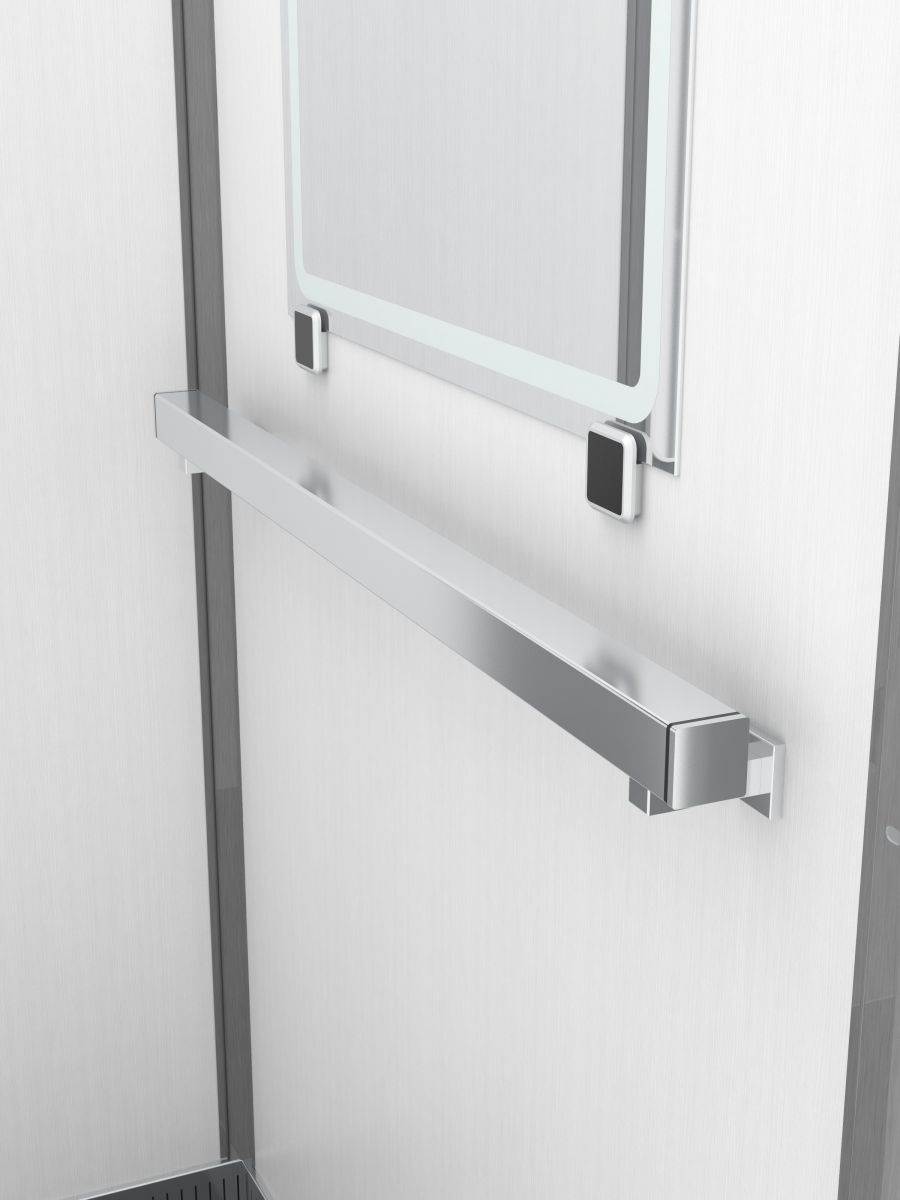

  • Square stainless-steel handle 40 x 40 mm

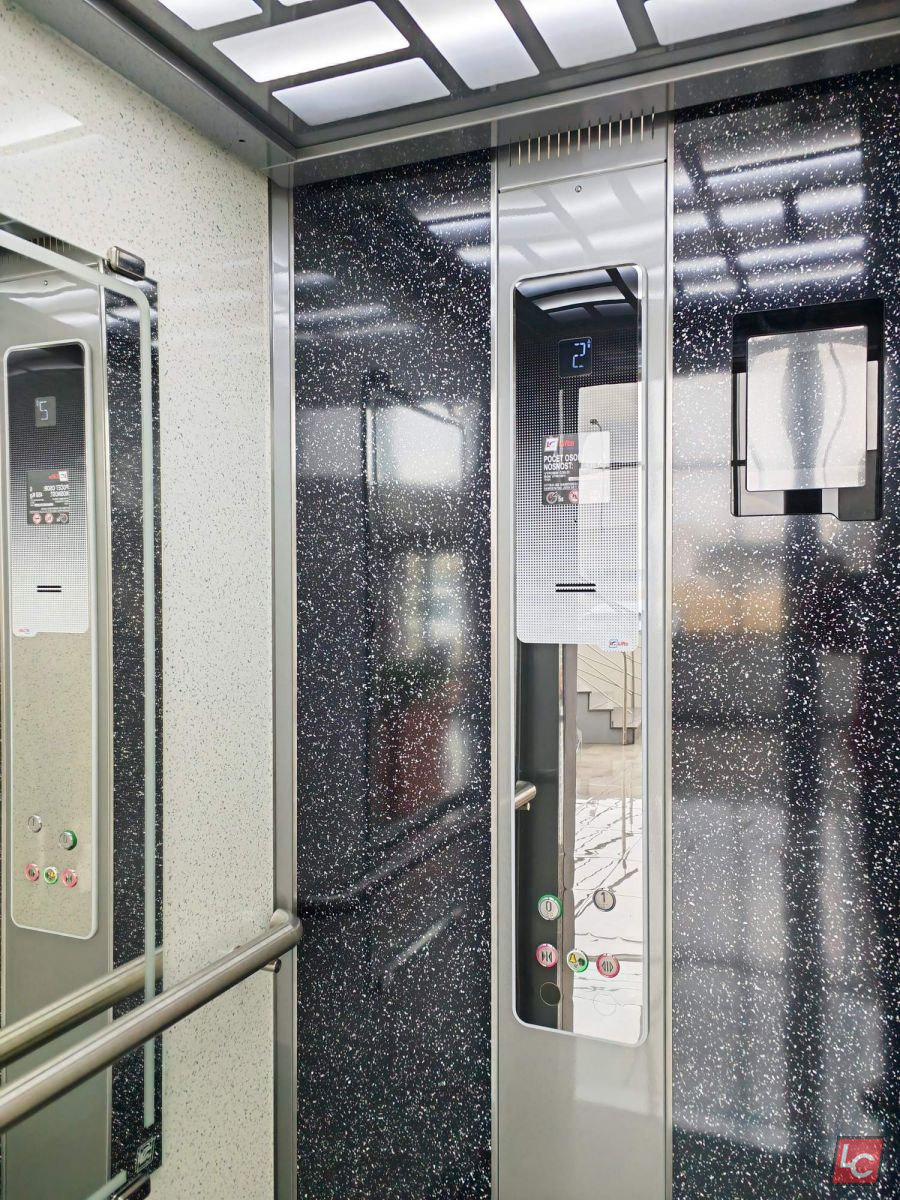

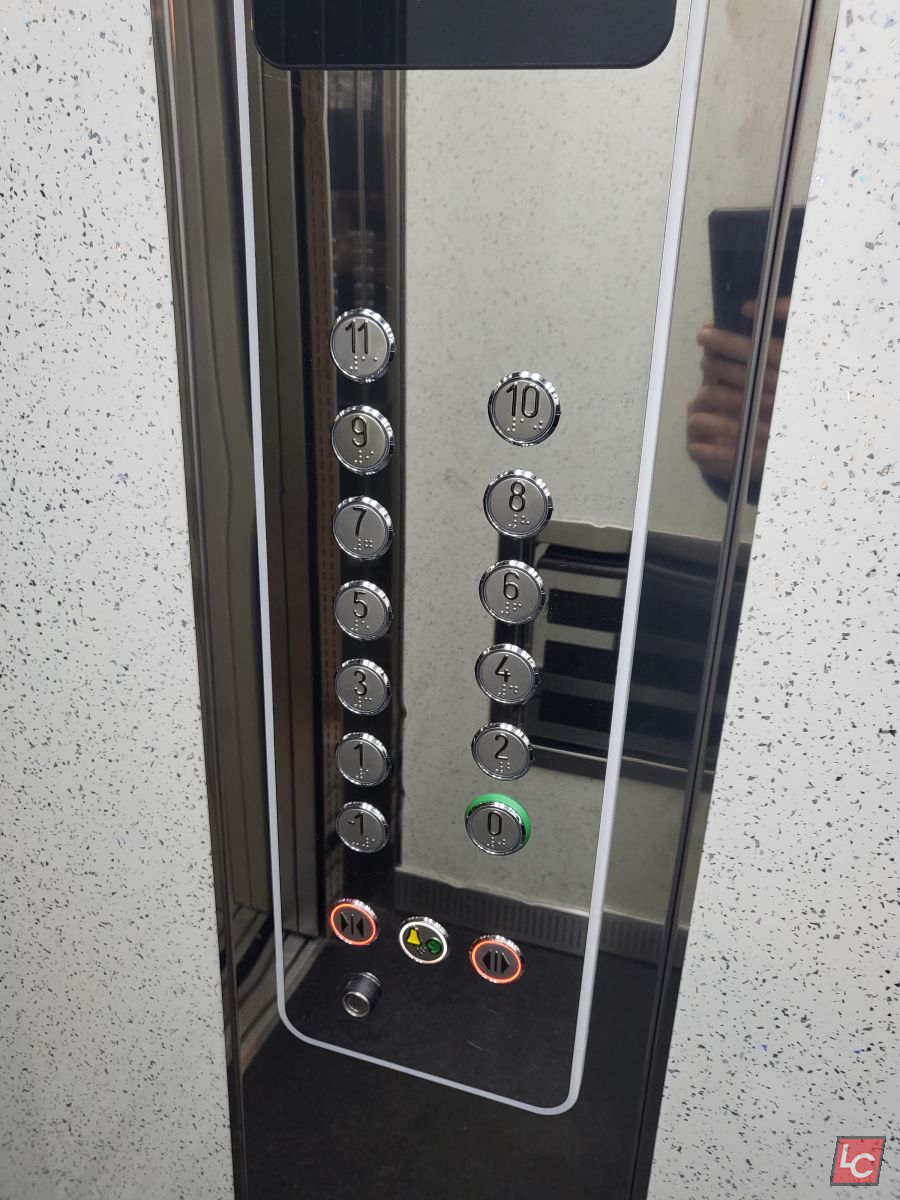

Lift cabin operator panel is composed of black polycarbonate glass with display, intercom system and pushbuttons (see page 3).

Lift cabin panel has a side lightning (red colour for lift going down, green colour for lift going up, white colour appears when lift is in a station)

Whole panel is in a Plalam plate (silver colour F12 PPS or Black colour N3PP)

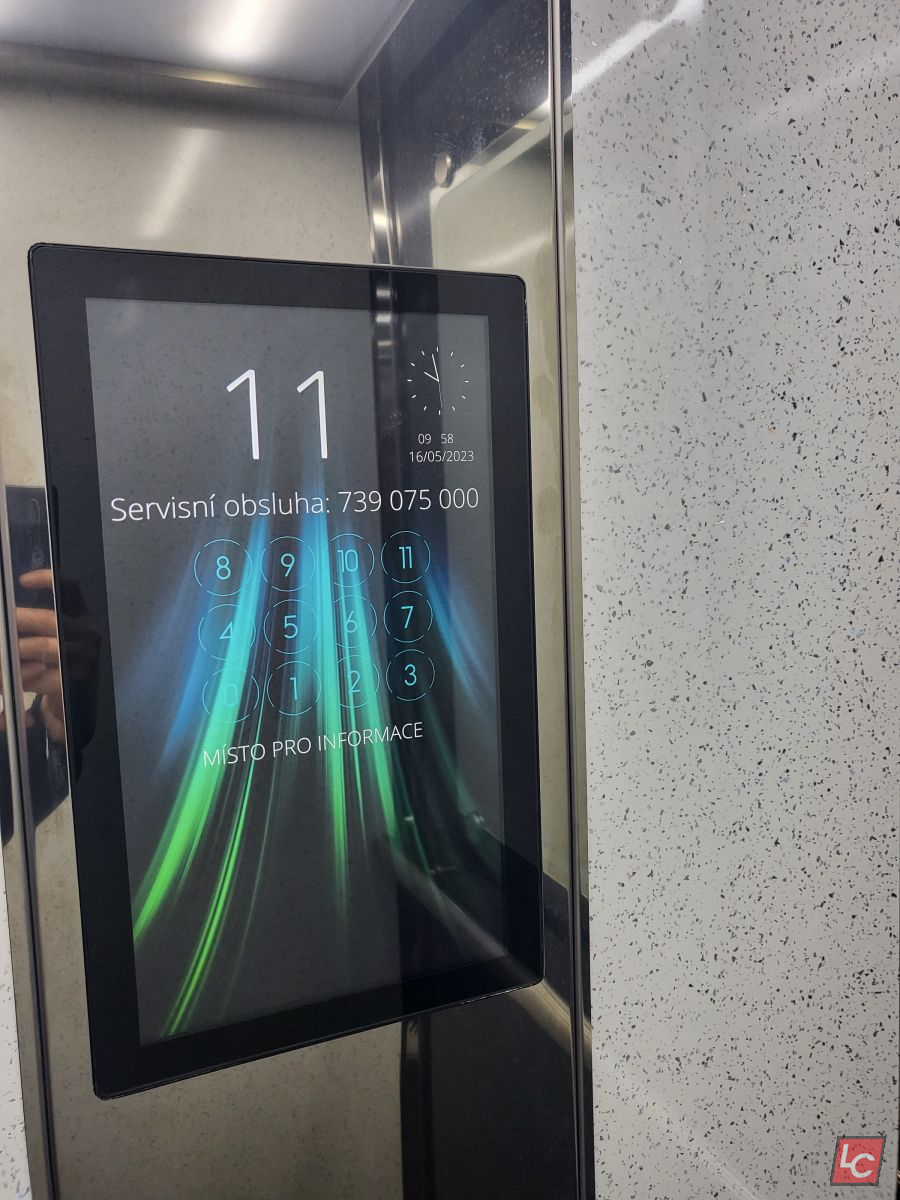

Display:

  • Black and white LCD 609 display
  • Small colour LCD display (4,3“)

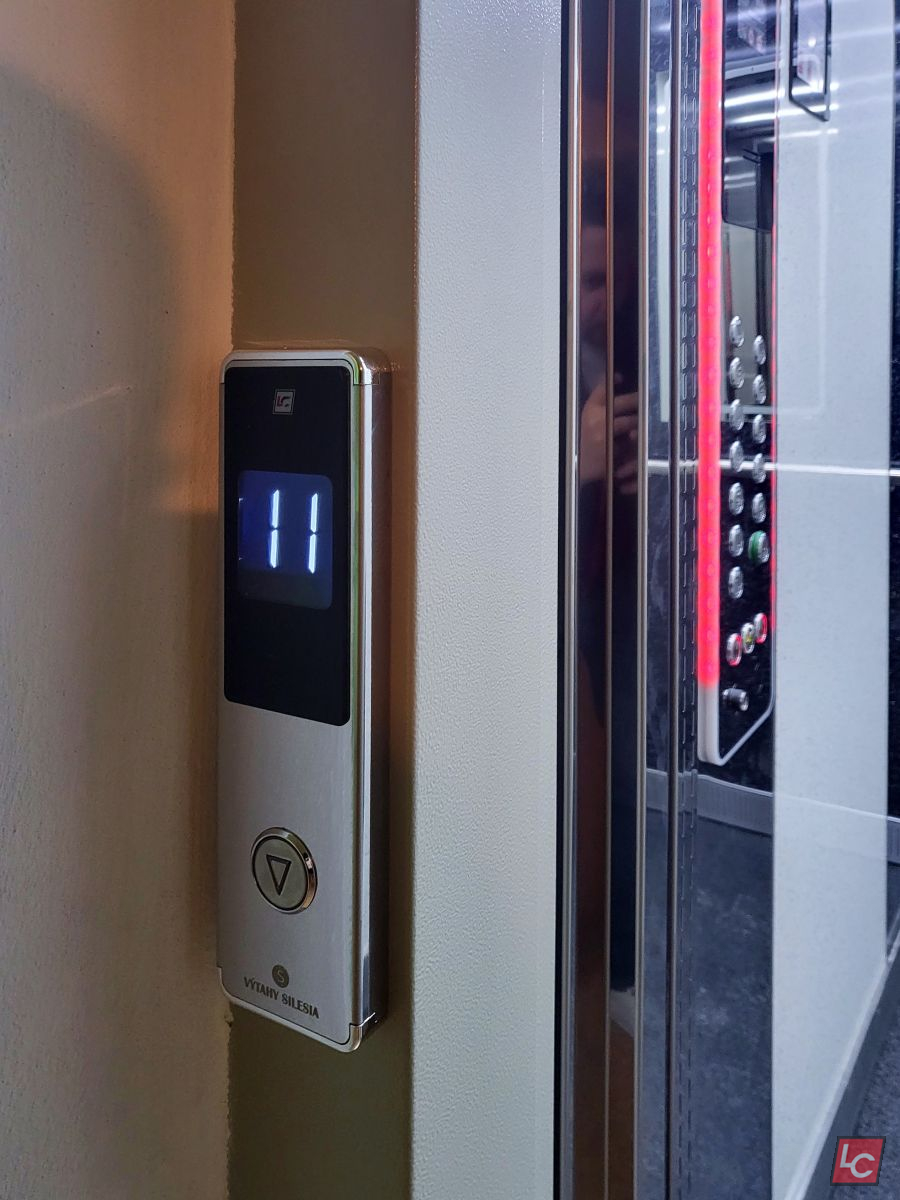

Landing pushbuttons


Landing pushbuttons
– black panel with pushbutton and display
On the display you can see what lift does at the time, if it goes up or down.

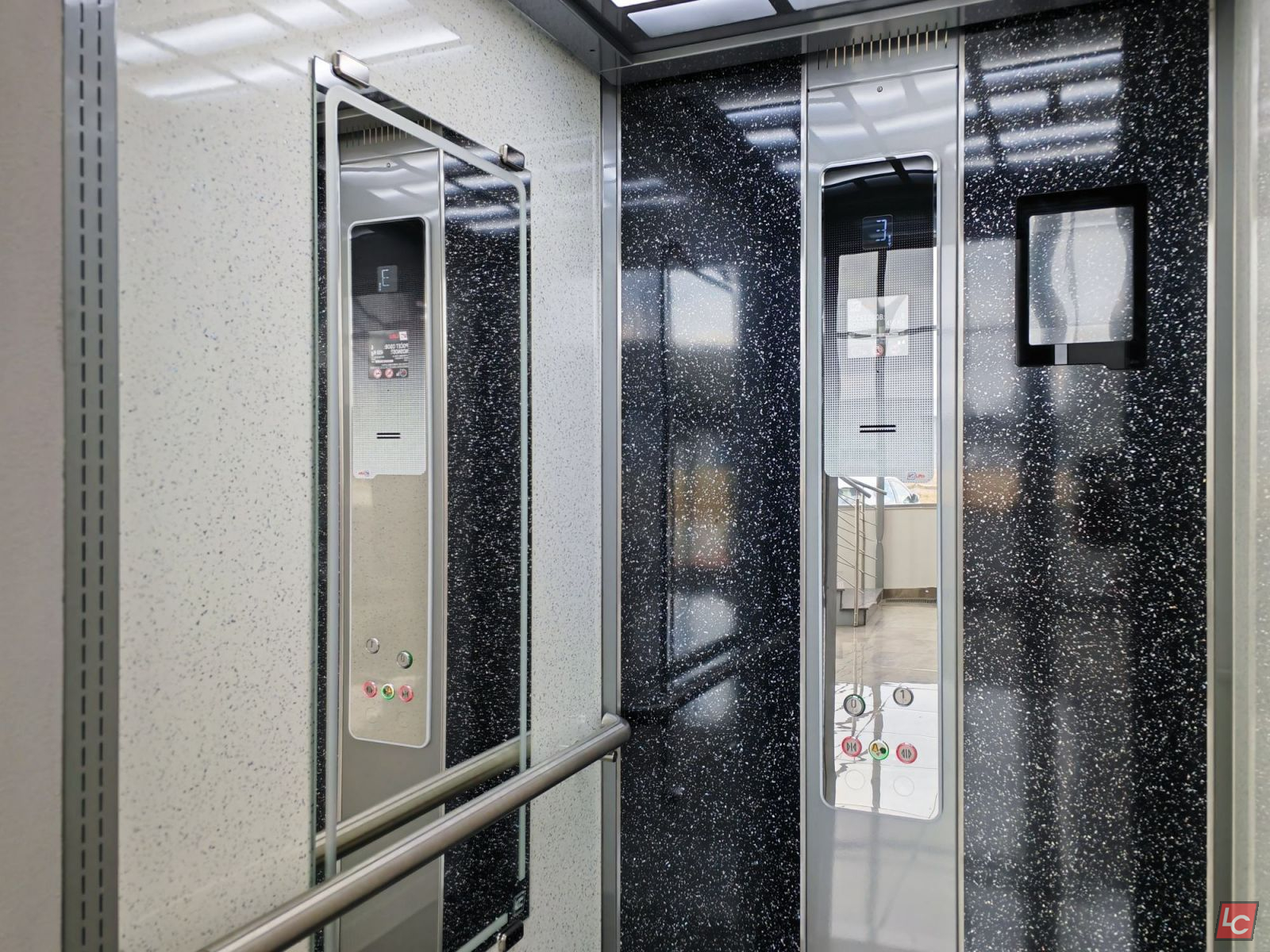

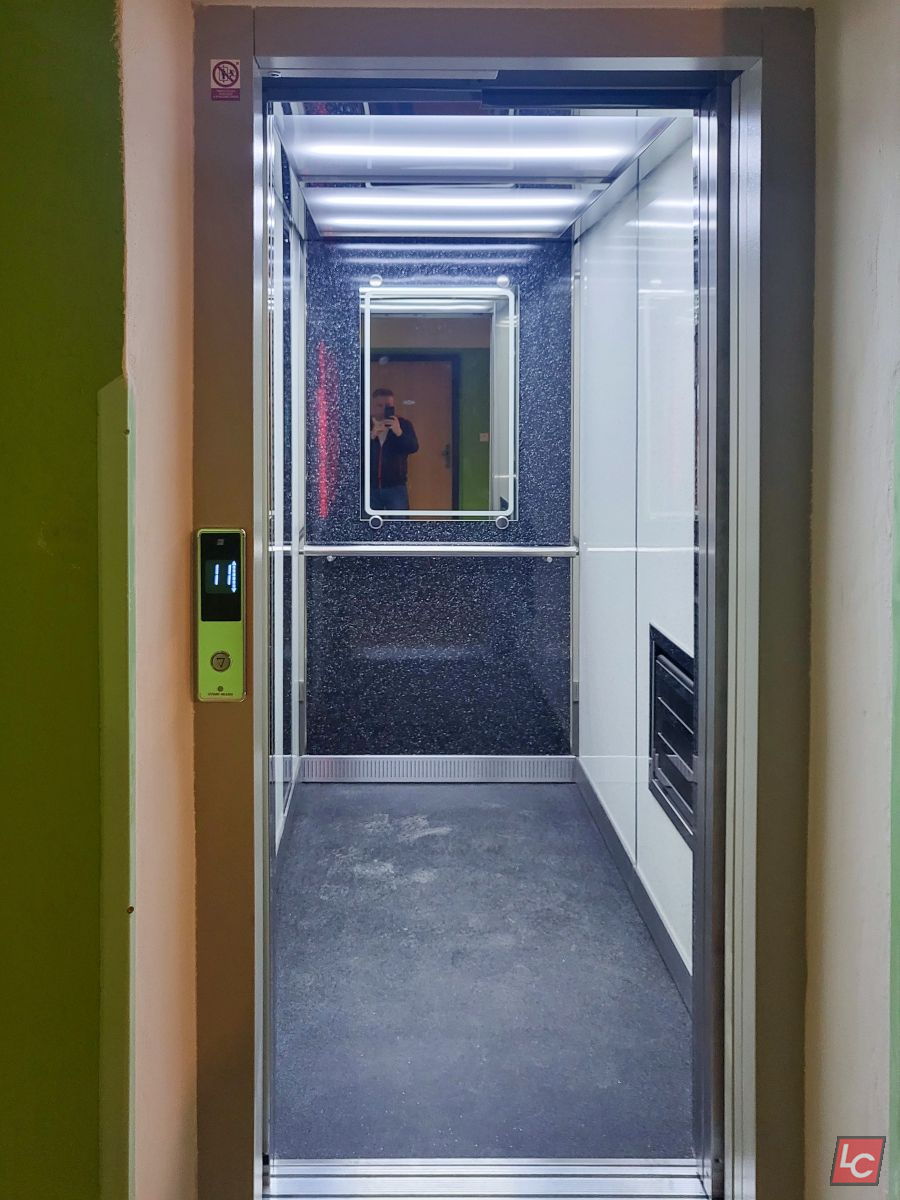

 Cabin LC Elegant in apartment building in Studénka



Cabin LC Elegant in apartment building in Karviná
