LC DoubleSpace 1250
Výtahy se strojovnou

Technical specification
- Load capacity 1250 kg
- Number of persons 16
- Number of stations max 16
- Travel max 35 m
- Cab 1200x2300 / 2120 mm
- Shaft 2100x2700 mm
- Shaft head 3715 mm (min. 2900 mm)
- Pit 1050 mm (min. 1000 mm)
|
- Frame Type TLM16-SK
- Gearless machine
- Engine power 9 kW / 20,5A
- Counterweight side / concrete
- Door 1100 mm wide
- Automatic doors 2 panels
- The lift is remotely monitored (LC monitoring 365)
|
1. Design lift cars
- Five series of lift cabins
- Dozens of lights, accessories and hundreds of color combinations
- Crystal clear surfaces, precise lines, perfectly manufactured
- Premium materials, stainless steel surfaces, LED lighting, design elements and sharpened glass
- The cabins are galvanized on both sides, which significantly increases their service life
<more information about lift design

|
2. Safe lift
- All lift components are pre-tested in our testing tower located in Karviná
- We are a lift manufacturer - a stable company with 100% Czech capital
- We monitor lifts for your safety - Watch your lift at any time and from anywhere. Several problems can be solved remotely.
- Lifts are equipped with emergency cabin communicator
- In case of power failure there is an emergency exit
|
3. Hi-Tech components
- We produce lifts for you in our factory in Karviná
- We complement our own production with quality components from leading European manufacturers
- Engine MORIS - our long-time partner, one of the largest and best hydraulic manufacturers in Europe
- Klefer doors - part of the multinational group "Tecnolama", delivering into 90 countries of the world <more about Klefer doors
- Pushbuttons in the cabin and station <more about button panels
|
4. Swiss manufacturing technology
- We use top-quality machines from Switzerland (laser and Bystronic press brakes, Trumpf sheet metal punching from Germany) for production.
- These technologies assure that LC lifts are made as compatible kits, which guarantee their long life
- Due to the technology of production and used materials, the whole structure is lightweight
- The main parts of the lif(cab, frame, brackets and more) are galvanized
- "If the components are not galvanized, they often look like 10 years old after 1 year of usage"
|
Files for download
-

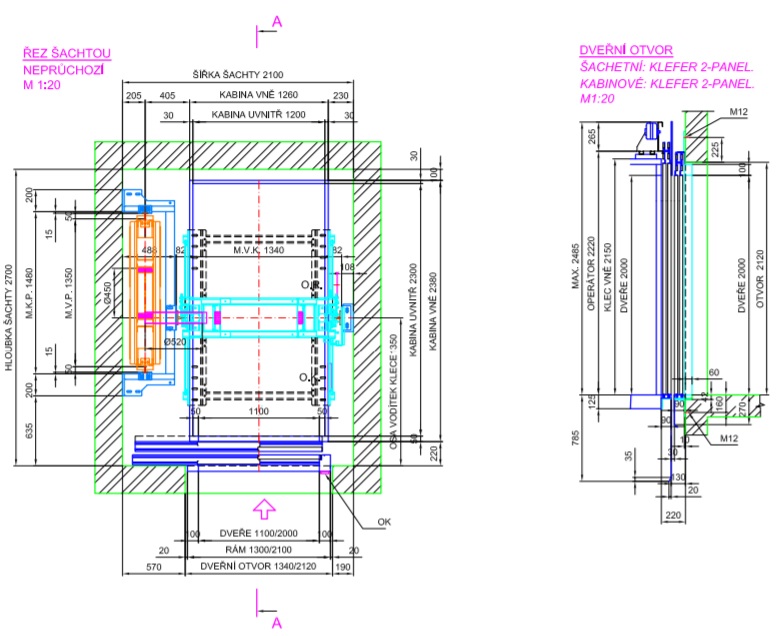

LC Double 1250 (1:2) - 25m, gearless, shaft 2100x2700 - Download
Offered lift cars


Sample of surfaces for LC Classic cabin
Sample of surfaces for LC Elegant and Exclusive cabin

Energy-efficient lifts
