Steel elevator shaft LC Alfa

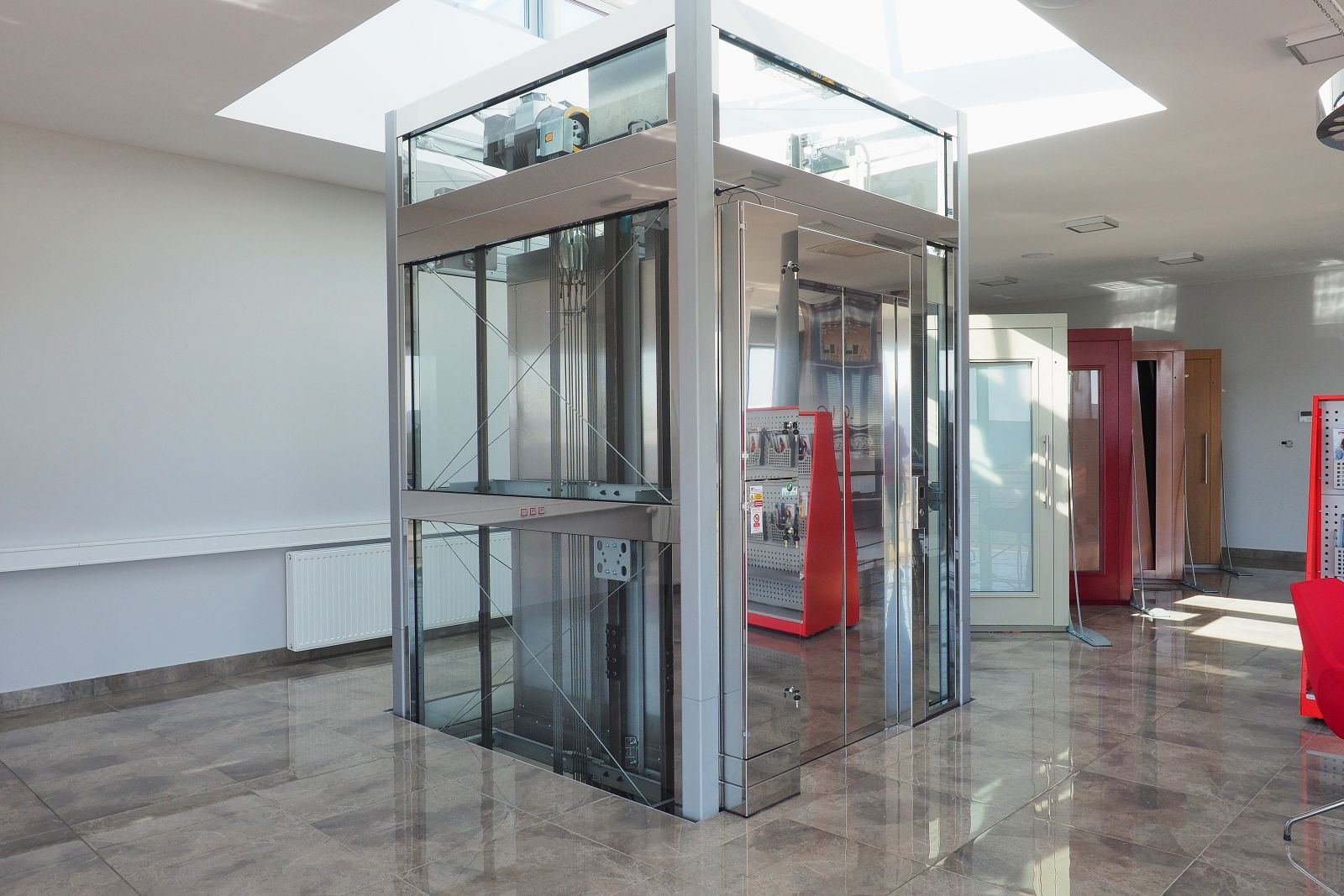

Assembled steel elevator shaft  LC Alfa A1 a A2 - for lifts with load capacity up to 650kg



The main advantages of the assembled steel elevator shaft LC Alfa:

  • Timeless construction design

  • Certified production according to  EN 1090-1+A1, EN 1090-2

  • Simple and quick assembly without welding on site

  • No grinding and noise during installation

  • Supplied as a kit with high precision of individual parts


Performance of steel elevator shaft:

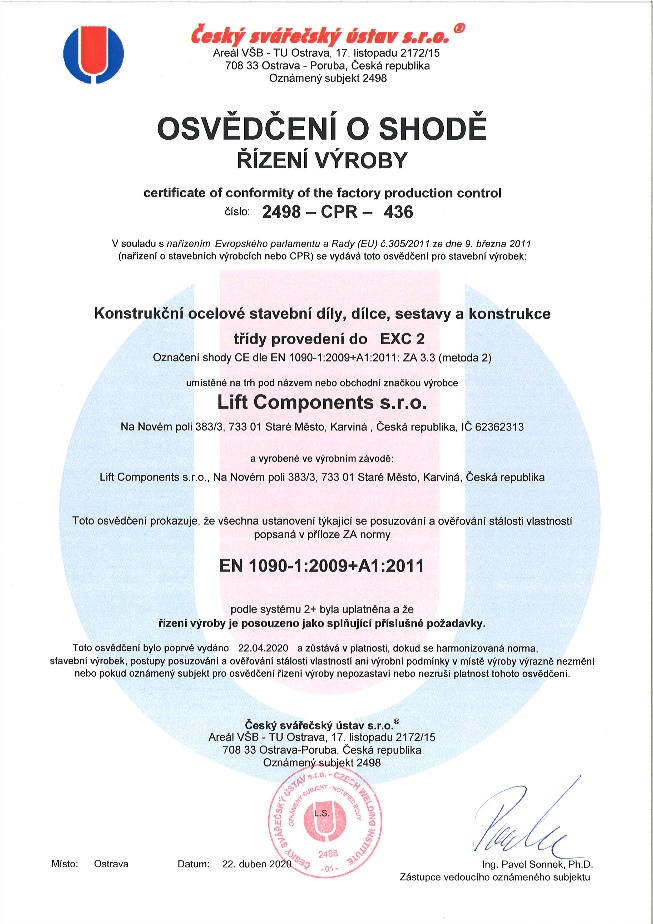

  • Certified (Certificate no. 2498-CPR-436), overall assembled/bolted steel structure made of thin-walled profiles enabling the transfer of forces from the lift

  • Designed for indoor use
  • Shaft construction / steel elevator shaft material: EXC2 / Steel S235JR, S355JR, open bent profiles
  • Color finish:  RAL paint / thickness 50 mm (standard RAL 7032)
  • Steel elevator shaft anchored at the level of pit or platform
  • In the platforms and in the shaft head using steel anchores in concrete

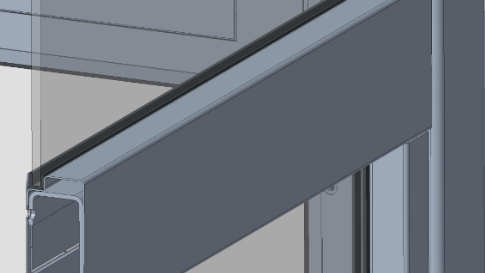

Filling of the steel elevator shaft – LC Alfa A1

·        Steel elevator shaft filling-layered (laminated safety glass 4+4+0,76mm)

·        glasses inserted into a stainless steel system

·        simple a very compact installation in stainless steel profile – horizontal crossbar, painted profile – vertical beam in the structure

·        without admitting the edge of the glass

·         glass – clear, colored, sandblasted

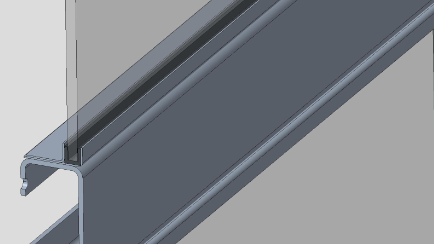

Filling of the steel elevator shaft – LC Alfa A2

·        Steel elevator shaft filling-layered (laminated safety glass 4+4+0,76mm)

·        glasses inserted between the profiles of the steel elevator shaft

·        simple installation in the „L“ segments with the recognition of the edge of the glass around the perimeter, RAL paint

·        glass – clear, colored, sandblasted





Part of the shipment

  • Delivery of the steel elevator shaft according to agreed drawing
  • Final operating documentation including static calculation
  • Material certificates
  • Declaration of product characteristics according to EN 1090-1+A1, EN 1090-2


Installation

  • Delivery time approx. 5/6 weeks from measurement and signing of the purchase contract (and depending on free production capacity)
  • Installation time of steel elevator shaft  1 floor = 1 day
  • Installation of filling 3 floors = 1 day





Steel elevator shaft LC Alfa A1, A2

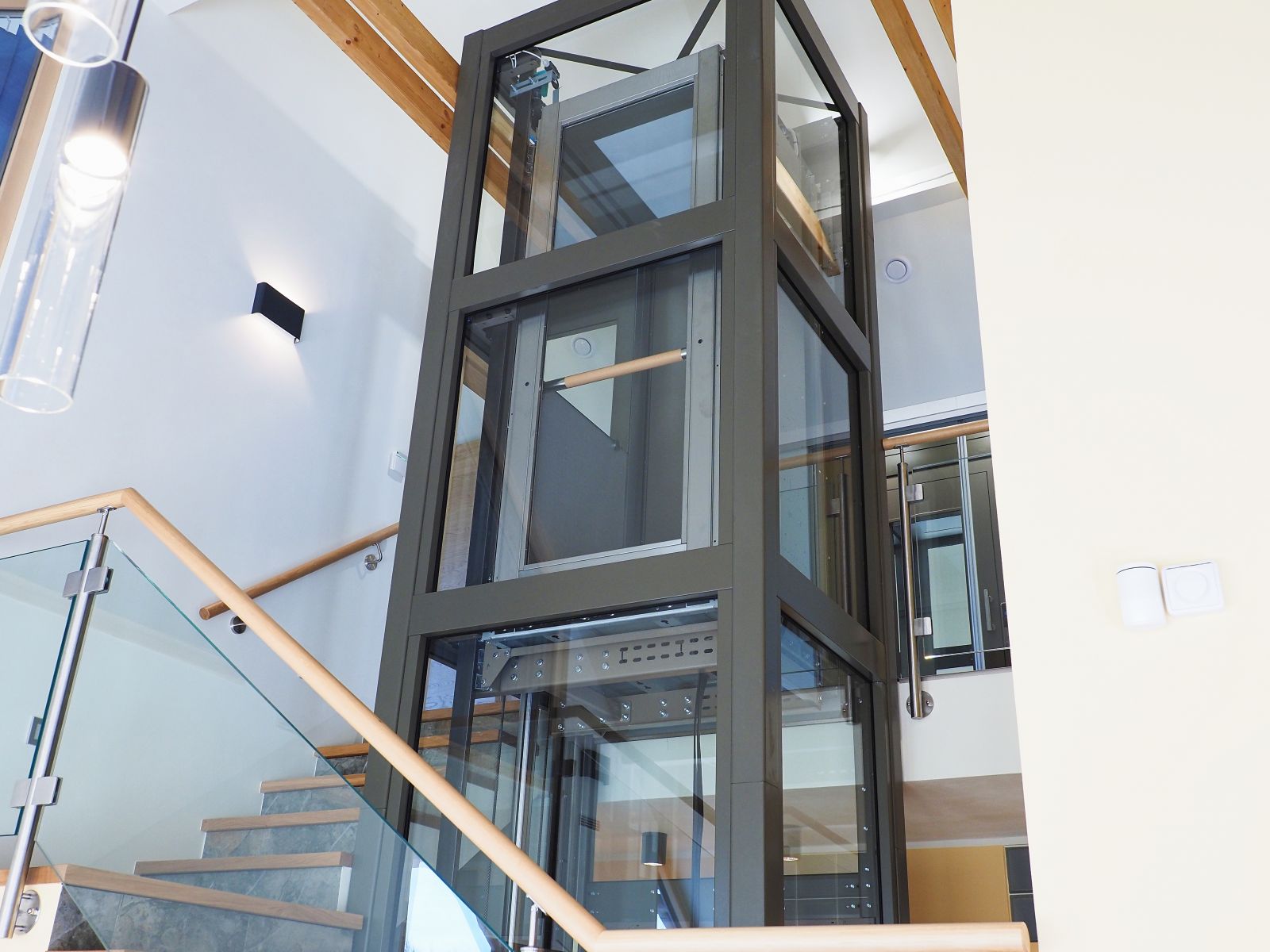

design examples





























LC colours
Surcharge colors LC; basic color is RAL 7032 (no extra charge)







Preparing:

Steel elevator shaft
LC Beta B1 - for LC HYDRO (MI) – especially for modernization, load capacity up to  500 kg
LC Beta B2 – for LC Double Zero, engine room next to the shaft  – especially for modernization, load capacity up to  500 kg
